Rotary Diverter Valve

Applications
This valve is designed for use with the pressure pneumatic system and composed of on aluminium body with an internal drum rotating in two directions an electro pneumatic piston and rackwork, a work position indication sensor, a piston movement control selenoid valve for drum bidirectional position setting.

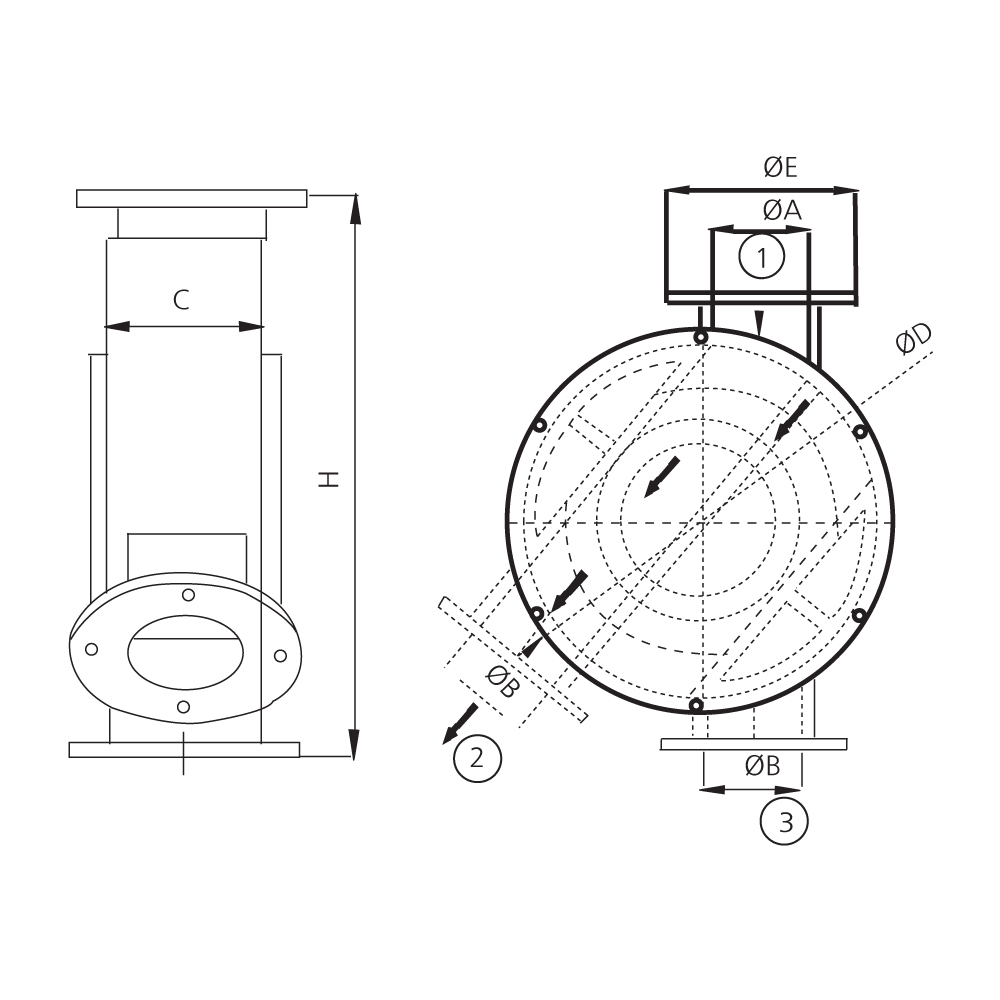

Model Dimensions
mm
Weight
kg
ØA ØB C ØD ØE H
MCPK-50 50 50 90 270 120 340 11
MCPK-70 70 70 110 285 135 355 13
MCPK-95 95 95 135 370 180 440 24
MCPK-120 120 120 175 480 220 580 52
