Application
For dust laden air in the volume range of approximately 5~600 m3 / min. The filter is used for removing dust particles from dust/gas mixtures. The round filter housing allows a first seperation by means of centrufugal force. The subsequent filtration through the filter fabric puriflies the air to a high degree, fully meeting today\'s environmental protection legislation.
Advantages - Proven high load capacity of the filter
- Maximum cleanoff of the filter bags
- High degree of prutiy of the cleaned air, due to filter fabrics corresponding best to a given product.
- Rinsing air tank integrated in the filter, no additional tank requited.
- Simple generation of rinsing - air by means of rotary piston or periphery blows.
- Bag filters as total seperators at the receiver end of pneumatic conveying systems, or as aspiration filters, insert filters, or bin-mounted filters.
Features
Operating pressures: Negative pressure up to 0,3 bar. Positive pressure up to 0,3 bar. Reinforced design for higher pressures. Bag-cleanoff by means of oil-free and condensate - free low - pressures rinsing air, 0,4 ~ 0,6 ba. Electronic - fluidic rinsing system with high efficiency reverse - air cleaning. Rinsing - air cosumption: 40 x 45 Nlt bag x pulse.
Where It Is Used
- In food industry
Flour Mills
Biscuit factories
Pasta factories
Malthouses, breeweries
Coffee factories
Nut processing
- In animal feed industry
- In detergent industry
- In wood industry
- In printing ink and paints industry
- In plastic industry
- In chemical industry
- In cement industry

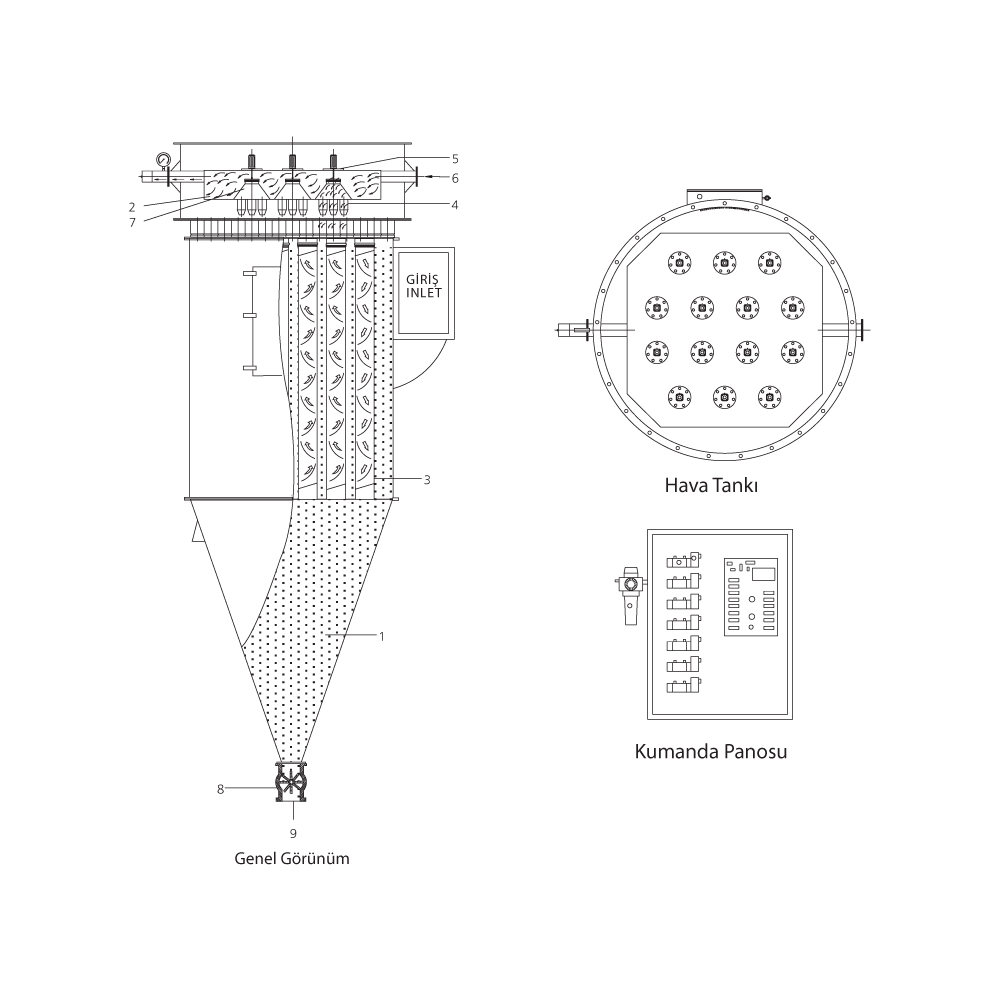

- General inviromental protection Parts of Filter - Dust - air chamber - Clean - air chamber - Filter bags - Rinsing - air nozzles - Rinsing - air valves - Low - pressure rinsing - air - Integrated rinsing - air tank - Discharge airlock - Dust outlet
